Bộ Đếm Counter Hanyoung GF4-T


Hãng sản xuất: Hanyoung

Mã thiết bị: GF4-T

Bảo hành: 12 Tháng

Xuất xứ: Korea

Tình trạng: Còn hàng

Xem thêm các Bộ Đếm Counter khác.

Xem thêm các Bộ Đếm Counter của Hanyoung.


Giá liên hệ 968,000 ₫

Với số lượng lớn, xin quý khách vui lòng liên hệ trực tiếp để được giá tốt hơn.

Số lượng

Chia sẻ sản phẩm này

Thông số kĩ thuật
Model GF4-P GF4-T
In Timer function Repeat accuracy ±0.01 % ± 0.05 % second Max. (Power supply start)
± 0.005 % ± 0.003 % second Max. (Reset start)
Ratio to set value
Variation due to
voltage change
Variation due to
temperature change
Insulation resistance 100 MΩ Min. (at 500 V d.c)
(between current – carrying terminal and exposed noncurrent – carrying metal parts,
between power supply circuit and control output circuit)
Dielectric strength 2,000 V a.c 50 / 60 Hz for 1 minute
(between current – carrying terminal and exposed noncurrent – carrying metal parts,
between power supply circuit and control output circuit)
Noise immunity Square wave noise by simulator
AC : ± 2 kV (between power supply terminal board)
± 500 V (between input terminal)
Vibration Mechanical durability : 10 to 55 Hz : 0.75 mm double amplitude
Malfunction durability : 10 to 55 Hz : 0.5 mm double amplitude
Shock Mechanical durability : 300 m/s² (approx. 30 G)
Malfunction durability : 100 m/s² (approx. 10 G)
Life expectancy Mechanical : 10,000,000 operations Min.
Electrical : 100,000 operations Min. (250 V a.c 3 A)
Weight GF4 – P : 184 gms, GF4 – T : 168 gms (with adaptor), GF4 – P41S : 100 gms
Power supply 100 – 240 V a.c 50 – 60 Hz
Power consumption GF4 – T : 4.8 V A, GF4 – P : 6.2 V A (240 V a.c 60 Hz)
Reset / Inhibit Reset by power OFF : Min. power OFF time : 0.5 s
External reset or inhibit : Min. reset input signal width : 0.02 s
Control output SPDT : 250 V a.c 3 A cosØ = 1(resistive load)
Open collector : 30 V d.c Max. 100 mA Max.
Ambient temperature Operating : -10 °C to 55 °C
Humidity 35 to 85 % R.H.

Sản phẩm cùng loại

Bộ Đếm Counter Hanyoung GF7-T
Giá liên hệ 1,166,000 ₫
Bộ Đếm Counter Hanyoung GF7-P
Giá liên hệ 1,848,000 ₫

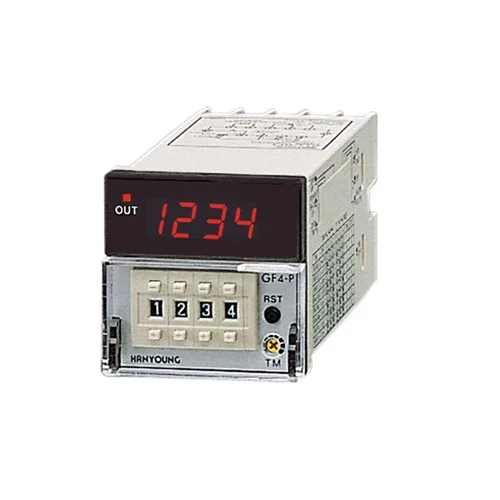

Bộ Đếm Counter Hanyoung GF4-P
