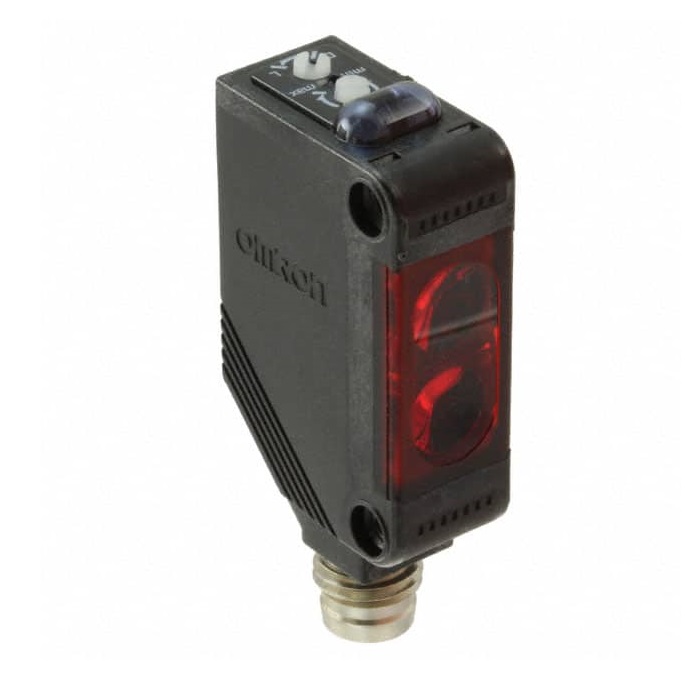

Cảm Biến Quang Photoelectric Sensor Omron E3Z-D67


Hãng sản xuất: Omron

Mã thiết bị: E3Z-D67

Bảo hành: 12 Tháng

Xuất xứ: Indonesia

Tình trạng: Còn hàng

Xem thêm các Cảm Biến Quang khác.

Xem thêm các Cảm Biến Quang của Omron.


Giá liên hệ

Với số lượng lớn, xin quý khách vui lòng liên hệ trực tiếp để được giá tốt hơn.

Số lượng

Chia sẻ sản phẩm này

Thông số kĩ thuật
Shape Square type
Sensing method Diffuse-reflective
Sensing distance White paper 300 x 300 mm: 1 m
Differential distance 20% max. of sensing distance
Light source Infrared LED (860 nm)
Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption 30 mA max.
Control output NPN open collector
26.4 VDC max.
100 mA max.
Residual voltage: 1 V max. (Load current Less than 10 mA)
Residual voltage: 2 V max. (Load current 10 to 100 mA)
Operation mode Light-ON/Dark-ON selectable
Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection, Mutual interference prevention
Response time Operate or reset: 1 ms max.
Sensitivity setting Single-turn adjustment
Ambient illuminance Incandescent lamp: 3,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature range (Operating) -30 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating) 35 to 85% (with no condensation)
Ambient humidity range (Strage) 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. (500 VDC megger)
Dielectric strength 1000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67
Connection method M8 connector models
Indicator Operation indicator (orange), Stability indicator (green)
Weight Package: Approx. 20 g
Accessories Instruction manual
Material Case: Polybutylene terephthalate (PBT)
Lens: Denatured Polyarylate
