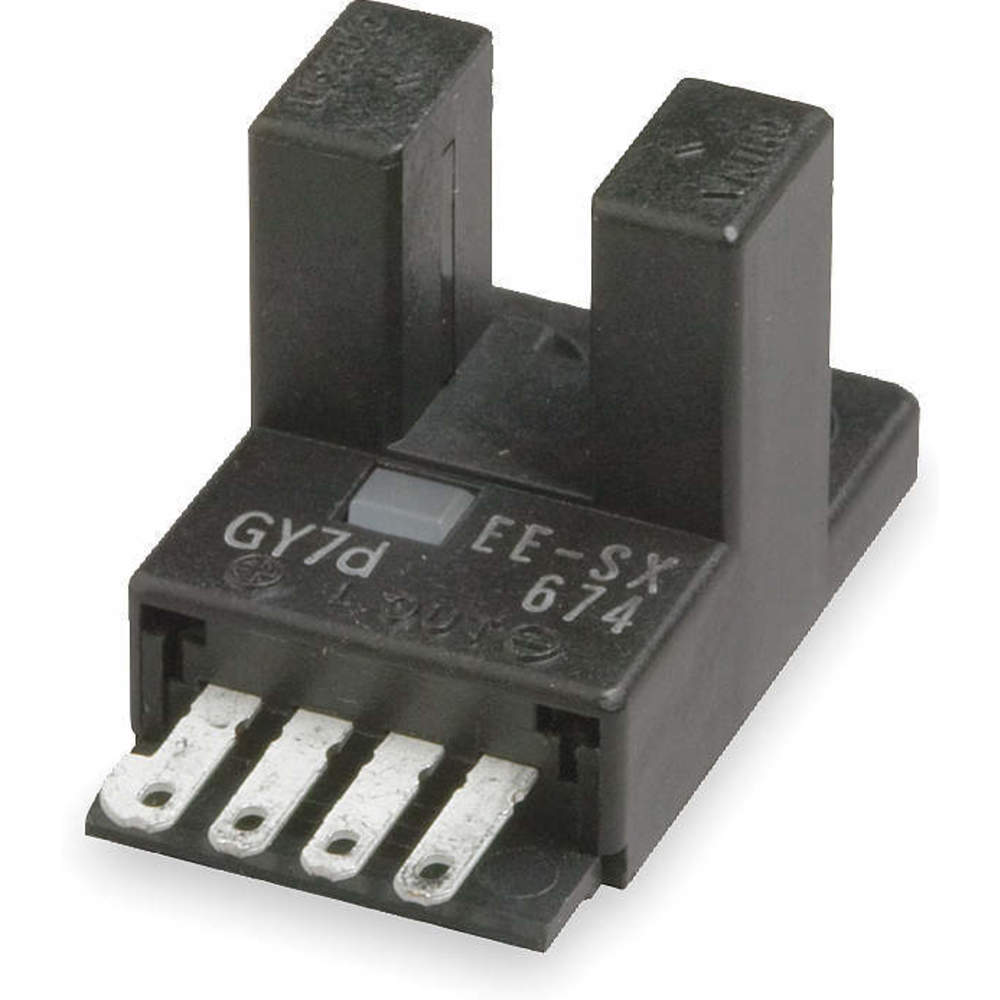

Cảm Biến Quang Photomicro Sensors Omron EE-SX674

Hãng sản xuất: Omron

Mã thiết bị: EE-SX674

Bảo hành: 12 Tháng

Xuất xứ: Trung Quốc

Tình trạng: Còn hàng

Giá liên hệ

Với số lượng lớn, xin quý khách vui lòng liên hệ trực tiếp để được giá tốt hơn.

Số lượng

Thông số kĩ thuật

Type		Grooved Type (Close-mounting)
Luminous method		Non-modulated
Sensing method		Through-beam type
Sensing distance		Slot width: 5 mm
Operation mode		Dark-ON/Light-ON (selectable)
Standard sensing object		Opaque, 2 x 0.8 mm min.
Differential distance elements		0.025 mm max.
Light source （Peak wavelength）		Infrared LED (940 nm)
Indicator		Light indicator (red)
Power supply voltage		5 to 24 VDC ±10% ripple (p-p) 10% max.
Current consumption		12 mA (L terminal open)
Control output	Output type	NPN open collector output
	Load power supply voltage	5 to 24 VDC
	Load curren	100 mA max.
	Residual voltage	at 100 mA load current: 0.8 V max. at 40 mA load current: 0.4 V max.
Protection circuits		Output short-cut protection
Response frequency elements		1 kHz min. Average value: 3 kHz
Illumination on the surface receiver		Fluorescent light: 1000 lx max.
Ambient temperature		Operating: -25 to 55 ℃ (with no freezing or condensation) Storage: -30 to 80 ℃ (with no freezing or condensation)
Ambient humidity		Operating: 5 to 85% RH (with no condensation) Storage: 5 to 95% RH (with no condensation)
Vibration resistance		Destruction: 20 to 2000 Hz, peak acceleration 100 m/s², 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods)
Shock resistance		Destruction: 500 m/s² for 3 times each in X, Y, and Z directions
Degree of protection		IP50
Connection method		Connector type (Direct soldering possible)
Weight		Package: Approx. 3 g
Material		Case: Polybutylene terephthalate (PBT) Emitter/Receiver Cover: Polycarbonate (PC)
