Mô tả
| Contactors with AC or DC coil | ||||
| kW | A | N/O | N/C | |
| 4 | 9 | 1 | 1 | LC1D09●● |
| 5.5 | 12 | 1 | 1 | LC1D12●● |
| 7.5 | 18 | 1 | 1 | LC1D18●● |
| 11 | 25 | 1 | 1 | LC1D25●● |
| 15 | 32 | 1 | 1 | LC1D32●● |
| 18.5 | 38 | 1 | 1 | LC1D38●● |
| 18.5 | 40 | 1 | 1 | LC1D40A●● |
| 22 | 50 | 1 | 1 | LC1D50A●● |
| 30 | 65 | 1 | 1 | LC1D65A●● |
| 37 | 80 | 1 | 1 | LC1D80●● |
| 45 | 95 | 1 | 1 | LC1D95●● |

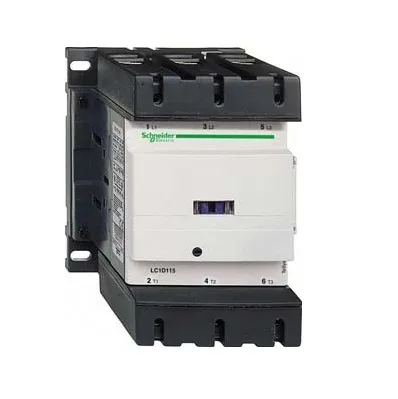

| 55 | 115 | 1 | 1 | LC1D115●● |
| 75 | 150 | 1 | 1 | LC1D150●● |
| Contactors with low consumption DC coil | ||||
| kW | A | N/O | N/C | |
| 4 | 9 | 1 | 1 | LC1D09●● |
| 5.5 | 12 | 1 | 1 | LC1D12●● |
| 7.5 | 18 | 1 | 1 | LC1D18●● |
| 11 | 25 | 1 | 1 | LC1D25●● |
| 15 | 32 | 1 | 1 | LC1D32●● |
| 18.5 | 38 | 1 | 1 | LC1D38●● |
| Standard control curcuit voltages ~ supply | |||||||||||||
| 24 | 42 | 48 | 110 | 115 | 220 | 230 | 240 | 380 | 400 | 415 | 440 | 500 | |
| Contactors LC1-D09…D150 (coils D115 and D150 ) | |||||||||||||
| 50/60Hz | B7 | D7 | E7 | F7 | FE7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | S7 |
| Contactors LC1-D80…D115 | |||||||||||||
| 50Hz | B5 | D5 | E5 | F5 | FE5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 |
| 60Hz | B6 | F6 | M6 | U6 | Q6 | R6 | |||||||
| Standard control curcuit voltages — supply | |||||||||||||
| 12 | 24 | 36 | 48 | 60 | 72 | 110 | 125 | 220 | 250 | 440 | |||
| Contactors LC1-D09…D65A (coils with integral suppression device fitted as standard) | |||||||||||||
| JD | BD | CD | ED | ND | SD | FD | GD | MD | UD | RD | |||
| Contactors LC1-D80…D95 | |||||||||||||
| JD | BD | CD | ED | ND | SD | FD | GD | MD | UD | RD | |||
| FW | BW | CW | EW | SW | FW | MW | |||||||
| Contactors LC1-D115 and D150 (coils with integral suppression device fitted as standard) | |||||||||||||
| BD | ED | ND | SD | FD | GD | MD | UD | RD | |||||
| Low consumption | |||||||||||||
| Contactors LC1-D09…D38 | |||||||||||||
| Volts— | 5 | 15 | 20 | 24 | 48 | 110 | 120 | 250 | |||||
| U 0.7…1.25 Uc | AL | JL | ZL | BL | EL | FL | ML | UL | |||||
