| Type |

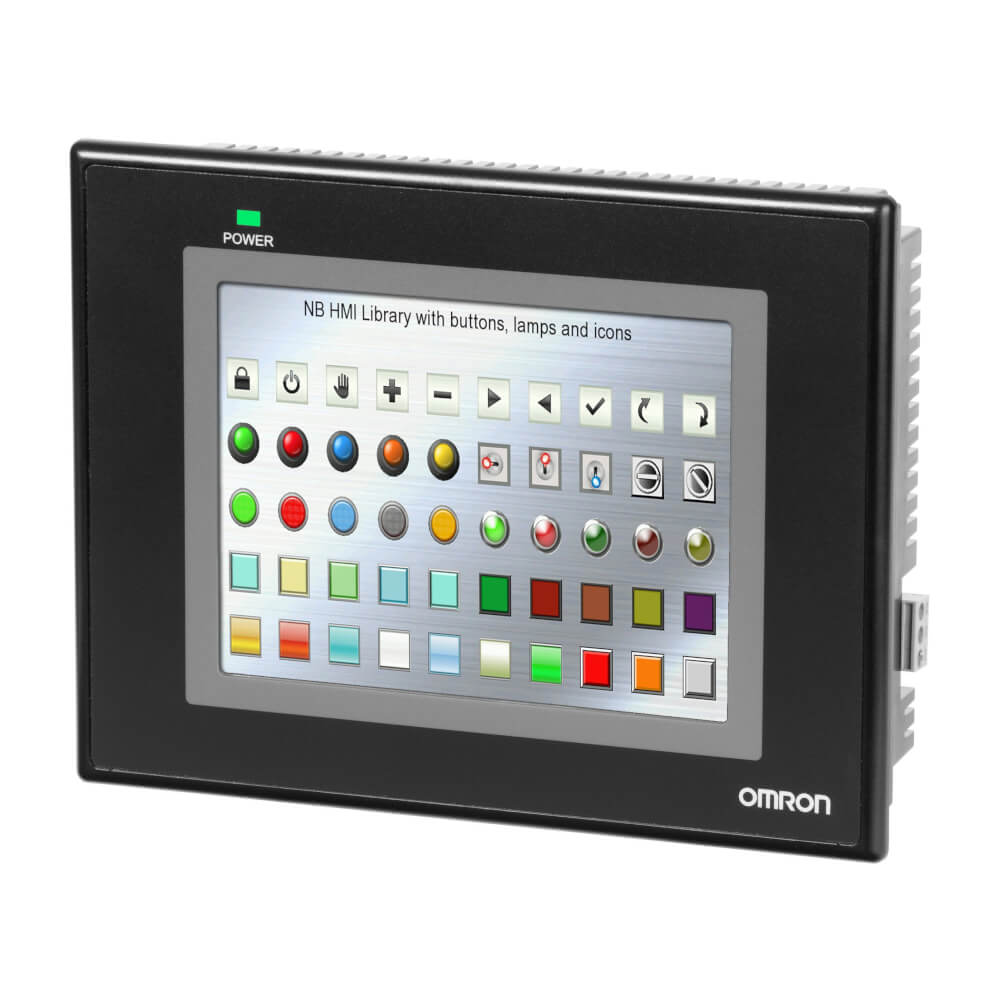

Touch Screen Human Machine Interface (HMI) Display |
| Industry Standards/Certifications |
UL, CSA, CE |
| Display Type |
Thin Film Transistor (TFT) Color Liquid Crystal Display (LCD) |
| Display Size |
5.6 in |
| Accessories |
NB-Designer, NB-CN001, XW2Z-200T, XW2Z-500T, NB-RSEXT-2M, NB5Q-ATT01, NB5Q-KBA04 |
| Spare Parts |
NB-ATT01 |
| Interaction |
Touch Screen |
| Display |
Color Graphics |
| Human Machine Interface (HMI) Type |
Dedicated Basic Human Machine Interface (HMI) |
| Resolution |
320 x 234 |
| Effective Display Area |
113 x 85 mm5.6 in |
| Touch Screen Type |
Analog Resistance Membrane |
| Bezel Color |
Black |
| Special Function |
C Language Macros, Vector Graphics and Animation |
| Light Emitting Diode (LED) Backlight |
50Khr White Light Emitting Diode (LED) |
| BMP-JPG Image Data |
65536 |
| Libraries Available |
Graphics, Tenkey, Keyboard, CP1 Templates |
| Built-In Communications |
RS-232C, RS-232C/RS-485/RS-422, USB Slave |
| RS-232C Port |
1 Built-In |
| RS-232C/RS-422A/RS-485 Port |
1 Built-In |
| Universal Serial Bus (USB) Slave |
1 Built-In |
| Printer |
PictBridge |
| Enclosure Type |
Type 1 Indoor use only |
| Maritime Standards |
GOST-R, EAC |
| Memory Card Type |
Universal Serial Bus (USB) |
| Direct Current (DC) Supply Voltage |
24 V |
| Mounting Orientation |
Portrait, Landscape |
| Display Colors |
65536 |
| Memory Size |
128 MB |
| Depth |
46 mm |
| Height |
142 mm |
| Width |
184 mm |
| Programmable Logic Controller (PLC) Compatibility |
Omron C/CP/CJ/CS Series, Mitsubishi Q/QnA/FX Series, Panasonic FP Series, Siemens S7 Series, Schneider Modicon/Twido, Delta DVP, LG LS Series, Allen Bradley, GE Fanuc, Modbus ASCII/RTU |
