Bộ Điều Khiển Driver Cho Motor Servo Panasonic MCDLT35SF
Hãng sản xuất: Panasonic
Mã thiết bị: MCDLT35SF
Bảo hành: 12 Tháng
Xuất xứ: Nhật Bản
Tình trạng: Còn hàng
Xem thêm các Driver Servo khác.
Xem thêm các Driver Servo của Panasonic.
Giá liên hệ
Với số lượng lớn, xin quý khách vui lòng liên hệ trực tiếp để được giá tốt hơn.
| Item | Specifications |
| Part Number | MCDLT35SF |
| Details | A6SF series Multifunction type (Pulse analog full-closed) with the safety function |
| Family Name | MINAS A6 |
| Series | A6SF series |
| Type | Multifunction type |
| Frame | C-Frame |
| Frequency response (kHz) | 3.2 |
| Control method | Position control, Velocity control, Torque control, and Full-closed control |
| Safety Function | with |
| Supply voltage | Single/3-phase 200 V |
| I/F Classification of type | Analog /Pulse, Modbus (RS485 /RS232) |
| Dimensions (W) (Unit: mm) | 65 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 170 |
| Mass (kg) | 1.6 |
| Environment | For more details, please refer to the instruction manual. |
| Input power: Main circuit | Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz |
| Input power: Control circuit | Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz |
| Encoder feedback | 23-bit (8388608 resolution) absolute encoder, 7-wire serial |
| About Encoder feedback | * When using it as an incremental system (not using multi-turn data), do not connect the battery for absolute encoder. Parameter Pr. 0.15 must be set to “1” (factory settings). |
| External scale feedback | A/B phase, homing signal differential input. ”A communication protocol developed for Servo Motor encoders of Panasonic Industry Co., Ltd.” is also supported. |
| Parallel I/O connector: | General purpose 10 inputs |
| Control signal Input | The function of general-purpose input is selected by parameters. |
| Parallel I/O connector: | General purpose 6 output |
| Control signal Output | The function of general-purpose output is selected by parameters. |
| Parallel I/O connector: Analog signal Input |
3 inputs (16-bit A/D : 1 input, 12-bit A/D : 2 inputs) |
| Parallel I/O connector: Analog signal Output |
2 outputs (Analog monitor: 2 output) |
| Parallel I/O connector: Pulse signal Input |
2 inputs (Photo-coupler input, Line receiver input) Both open collector and line driver interface can be connected. High speed line driver interface can be connected. |
| Parallel I/O connector: | 4 outputs (Line driver: 3 output, open collector: 1 output) |
| Pulse signal Output | Line driver output for encoder pulses (A/B/Z signal) or external feedback pulses (EXA/EXB/EXZ signal) open collector output also available for Z or EXZ signal. |
| Communication function | USB, RS232, RS485, Modbus-RTU |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Communication function: RS232 | 1:1 communication |
| Communication function: RS485 | 1: n communication (max 31) |
| Communication function: Modbus-RTU | 1: n communication |
| Regeneration | Built-in regenerative resistor (external resistor is also enabled.) |
| Control mode | Switching among the following 7 mode is enabled, (1) Position control, (2) Speed control, (3) Torque control, (4) Position/speed control, (5) Position/Torque control, (6) Speed/Torque control, (7) Full-closed control |
Driver Điều Khiển Servo Panasonic MADLT15SF

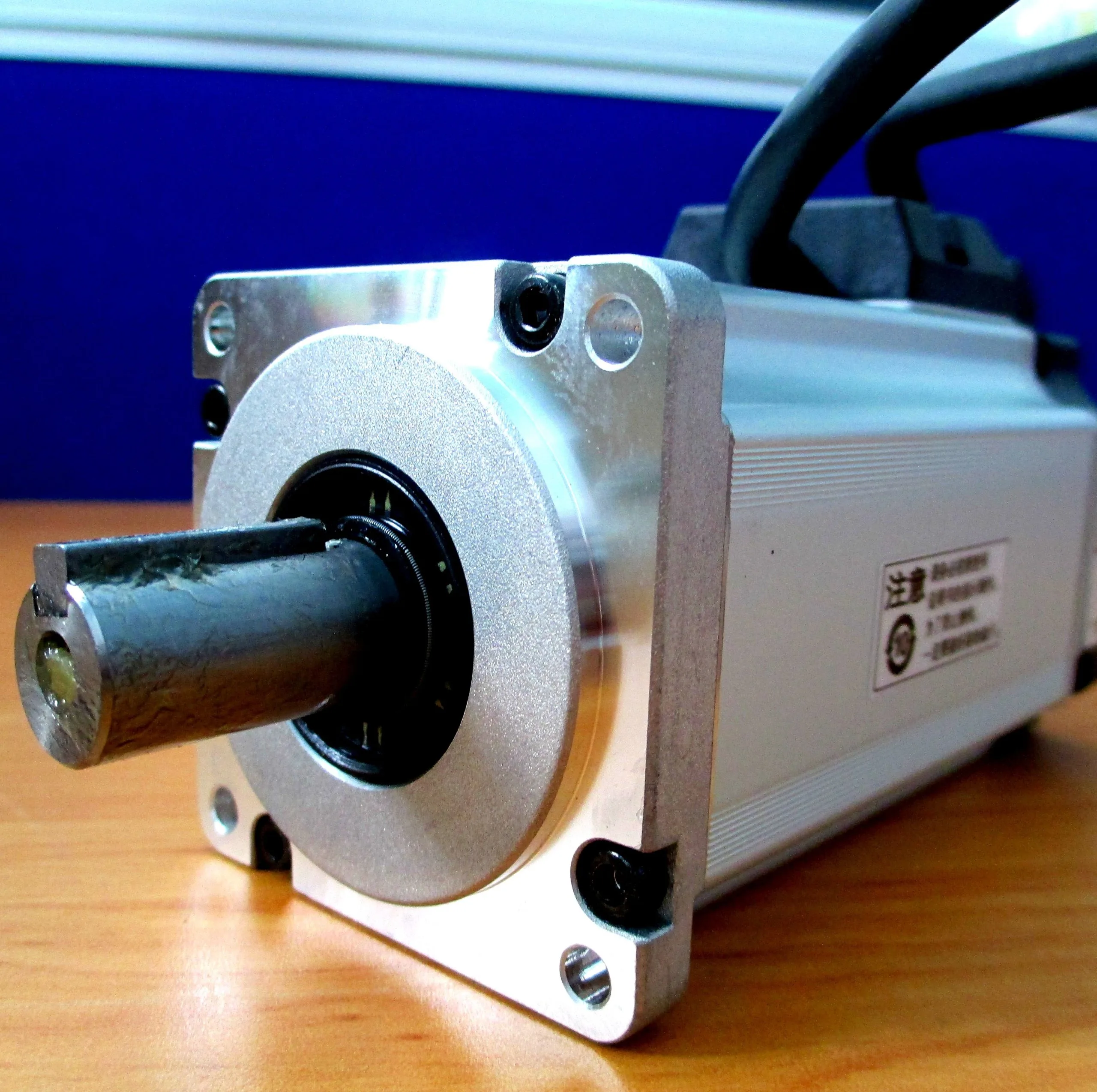

Động Cơ Motor Servo Panasonic 400W MHMD042J1U
